Top Five Types of Fasteners for HVAC Applications
Manufacturers of HVAC equipment are always searching for fasteners that make their assembly processes move quickly and cost efficiently. The Top Five Types of Fasteners for HVAC applications are for assembly-line operators who need fasteners that help them to the job faster and easier while also reducing costs.
HVAC systems are complex and require a lot of moving parts, especially when it comes to industrial fasteners. In this post we are exploring products from AdvanceBasics,and one of the top manufacturer of specialty fasteners in the USA – ARaymond/Tinnerman.
Spring steel specialty fasteners save time and money as they reduce material waste, require no special tools or skills, and are easy to install and remove.

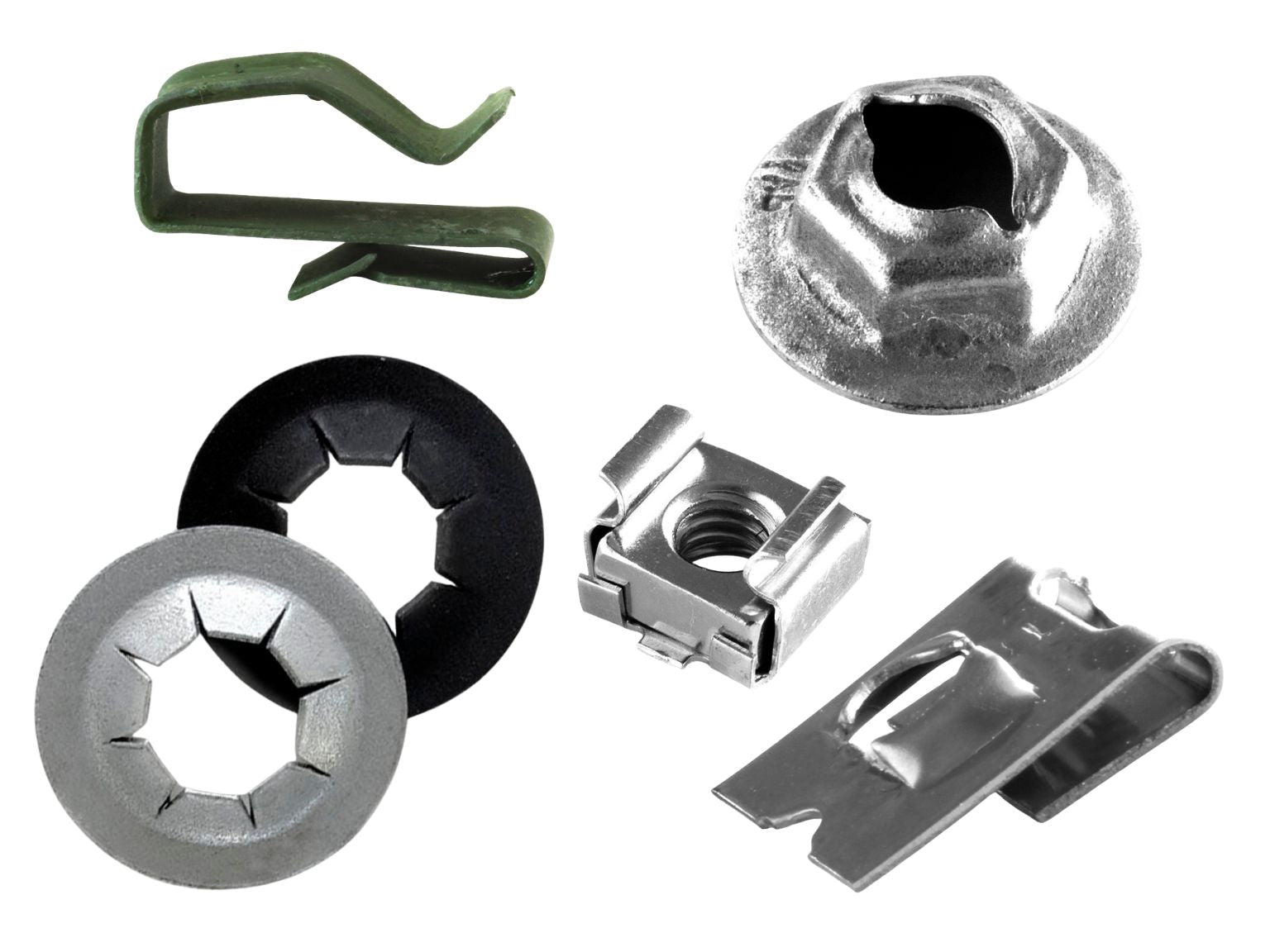

Panel and Trim Clips
Snap-in panel and trim clips provide a secure and cost-efficient fastening solution. Spring steel panel clips are suitable for high-temperature applications such as HVAC, and provide a strong connection when attaching mating panels or trim.
When space or design elements prevent welding or drilling, panel clips are a great fastening solution that results in a perfect, clean finish. Time and money are saved as assembly operations are simplified – no screws to install.
Trim and panel clips are fast and easy to install and are ideal for close-out panels, decorative panels and trim panels.
Benefits:
-
- Install in seconds
- Eliminates mechanical fasteners from view
- Improves aesthetics
- Lightweight
- Reduces vibration
Self-Retaining Threaded Fasteners
Self-retaining threaded fasteners like U-Nut Retainers and U-Nuts stay in place and do not creep. They possess high tensile strength and are easily installed with low push-on pressure, so no special tools or skills are required for installation.They provide a strong solution for thin sheet metal panels in HVAC units that are attached to an internal metal frame.
Benefits:
-
- Eliminates damage due to screw stripping
- Accommodates a variety of build specs
- Easy to use
Cage Nuts
Cage Nuts by AdvanceBasics are commonly used on HVAC equipment as they simply snap into a bolt receiving position at any convenient spot along the assembly line.
Cage Nuts or Rack Nuts are a combination of a spring steel fastener and a high-strength multi-thread nut. They do not require special tools or skills. Cage Nuts are self-retaining and are ideal for blind location assembly. They come in a variety of sizes for panel thicknesses of 0.5-6.4mm.
Benefits:
-
- Easy to install and disassemble
- Self-retaining
- Reduces vibrations
- No special tools required
- Can be applied anywhere on the assembly line
Palnut Stamped Nuts
Used instead of traditional hex nuts to reduce weight or for applications requiring lower torque, Palnut Stamped Nuts lock tightly and prevent disassembly.
Palnut Stamped Nuts are washer-style nuts that have an integrated washer that compensates for component build variations. The need for extra parts is eliminated as the all-in-one design can replace several smaller parts.
To reduce noise and ensure a watertight assembly, a seal can be added.
Benefits:
-
- Eliminates need for washers, lock washers
- Reduces inventory costs
- Requires less torque, reducing damage to panels
- Eliminates need for threaded rod or screw
Palnut Push-Ons
Palnut Push-Ons are an easy way to hold screws or bolts in place before the nut is positioned and tightened. Palnut shaft retainers cover smooth studs, metric studs, weld-studs, and grooved studs or shafts. Push-Ons are excellent fasteners for applications where space is limited.
Benefits:
-
- Light duty, low cost alternative
- Low profile design for small installations
- Reduces assembly time
- No tools needed
- Maximum holding power
For more information of the Top Five Types of Fasteners for HVAC applications, contact Advance sales team. Since 1972 we have been an authorized master distributor. We have the stock and service to help you find the right part for the job.
