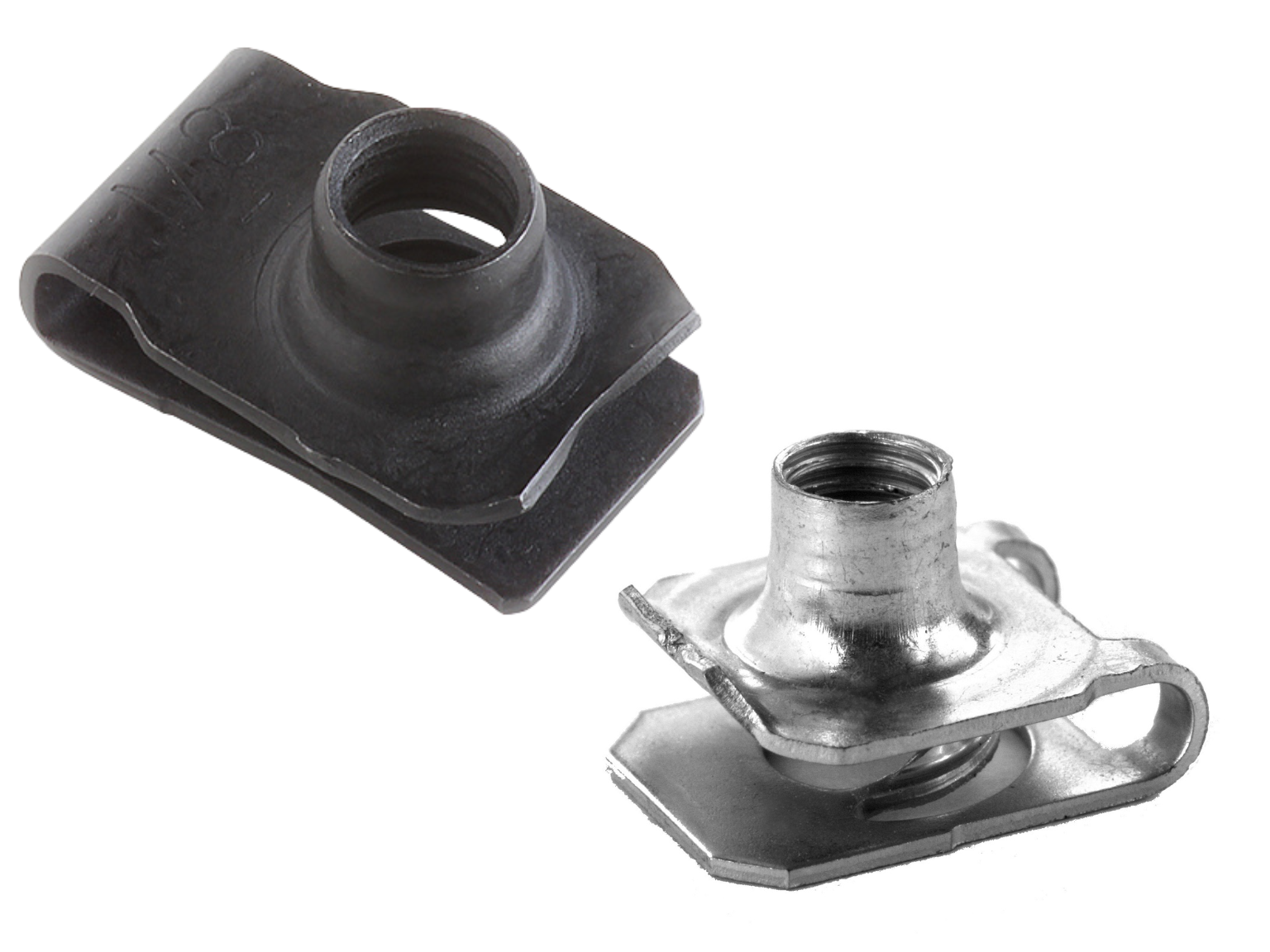

LUG nuts, threaded barrel nuts or chimney nuts are essential fasteners used in a variety of industrial and automotive applications. LUGS are basically a U-Nut with a threaded barrel chimney which provides deeper thread engagement than flat U-nuts. This design improves load capacity and serviceability across a wide range of industrial applications.
What is a U-Nut?
Before getting into all things LUG nuts, it helps to understand the family they belong to.
A U-nut — also called a speed nut, spring nut, or clip nut — is a one-piece stamped-metal fastener designed to snap onto the edge of a panel, bracket, or sheet metal flange. The "U" shape clamps the nut in place without requiring access to the back of the panel, which is a crucial advantage in assemblies where one side becomes inaccessible after installation.
U-nuts are a staple of automotive, appliance, aerospace, and electronics manufacturing.The genius of the U-nut family is speed and accessibility. There's no need to hold a separate nut in place while threading a bolt. The nut pre-clips to the panel and accepts a mating bolt when the assembly comes together later in the build sequence.
Within the U-nut family, designs vary widely depending on the required thread engagement length, panel thickness, access requirements, and load capacity. This is where threaded LUG nuts with their distinctive chimney barrels stand out.
LUG Nuts — The Threaded (Tapped) Barrel
These LUG nuts are different from automotive wheel fasteners.The term refers to a U-nut design where the threaded element is formed as a cylindrical barrel — a tubular chimney that is internally threaded (tapped) and extends perpendicular to the plane of the spring clip.
Anatomy of a LUG Nut
LUG nuts are suitable for higher torque applications and for use with bolts that must carry meaningful mechanical loads.The LUG nut has two parts: a spring steel U-clip that snaps over a panel edge or fits into a hole or slot, and a threaded barrel that protrudes from the clip body. The barrel provides significantly more thread engagement than a simple punched or extruded thread in a flat stamping, thus higher torque equals heavier loads.
Why the Barrel Form Factor Matters
The LUG barrel has five to ten full thread turns, which increases pullout resistance and thread durability over multiple assembly and disassembly cycles. A standard flat U-nut has just two to four threads via a punched or extruded tab. Under vibration or repeated assembly, these thin engagements are susceptible to cross-threading and stripping.
This is why LUG nuts are especially attractive in automotive interior trim, HVAC cabinets, electrical enclosures, and industrial machinery panels — anywhere a bolted joint will be revisited for maintenance or repair.
Materials and Finishes
LUG nuts are most commonly produced in low-carbon or medium-carbon steel, with the clip spring element requiring a hardness range that delivers both elasticity (to clip and grip the panel) and fatigue resistance (to survive the clipping operation and service loads without cracking).
Zinc electroplating is the workhorse finish for general industrial and automotive interior applications. It provides corrosion resistance in moderate environments and is compatible with most paint and coating systems.
Black phosphate and oil (Phos & Oil) is a chemical conversion coating commonly specified on LUG nuts and barrel-type U-nuts where a matte black appearance is required and the service environment is relatively dry and controlled.
Dacromet / Geomet is a thin-film inorganic coating used where superior salt-spray resistance is needed without the hydrogen embrittlement risk of electroplating. Common in underbody automotive and outdoor HVAC applications.
Stainless steel (304 or 316) is specified for food processing, marine, and pharmaceutical enclosures. The spring characteristics of stainless differ from carbon steel, so designers should verify clip retention force data from stainless-specific product series rather than treating it as a drop-in substitute.
Passivated or plain steel is used in corrosion-controlled environments or as a pre-paint substrate in automotive body-in-white applications where the assembly line coating covers the fastener after clipping.
Industry Applications
- Automotive manufacturers appreciate the combination of fast installation, alignment float, and one-sided access for high-speed automotive assembly operations. Door trim panels, instrument panels, underbody splash shields, HVAC ducts, and seat structures all rely on barrel-type U-nuts.
- HVAC and appliances use LUG nuts in sheet metal cabinet and ductwork assemblies where access panels must be removable for service.
- Electronics and server infrastructure in data centers use chimney nuts in rackmount server cabinets, power distribution units, and telecom enclosures. LUGS serve as mounting points for internal sub-assemblies that must be positioned at a precise standoff from the chassis wall for airflow and EMI management.
- Aerospace and defense types of chimney nuts are produced to tighter dimensional tolerances with full material certifications such as AMS and NASM.
LUGS by ARaymond/Tinnerman
Advance Components is a master distributor of LUG nuts manufactured by ARaymond/Tinnerman. We offered a large variety of threaded barrel nut fasteners for all industrial applications. Our highly trained sales team is skilled in LUG nut applications and is happy to help with custom bagging and shipping solutions. Buy LUG nuts 24/7 online at advancecomponents.com.
